Seat Cushion Fan

Seat Cushion Fan

Removing






- Remove the seat pan upholstery. Refer to => [ Cover and Upholstery, Seat Pan without Seat Depth Adjustor ] Cover and Upholstery, Seat Pan Without Seat Depth Adjustor.

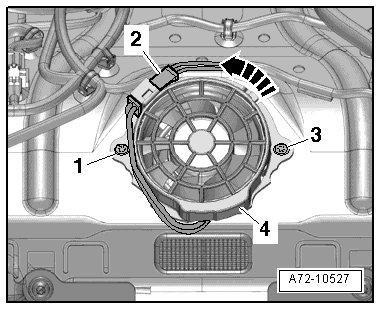

- Disconnect and free up the electrical connector - 2 -.

- Remove the bolts - 1 - and - 3 -.

- Rotate the cover grille - 4 - in the direction of the - arrow - and remove the fan.

Installing

To install, perform the steps used in removal in reverse order.

For the correct tightening specifications, refer to => [ Seat Cushion Fan, Assembly Overview ] Seat Cushion and Backrest Fan Assembly Overview.
