Power Headrests

Power Headrests

• The headrests can be removed with front seat installed.

• The release button is located on the outer left of the driver seat and inner left of the passenger seat.

Removing






- Remove backrest cover panel. Refer to => [ Backrest Cover ] Backrest Cover.

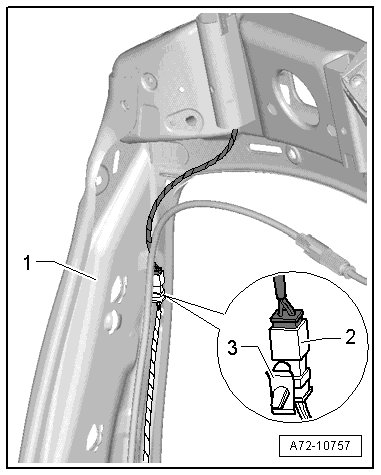

- Unclip the cable tie clip - 3 - on the backrest frame - 1 -.

- Disconnect the connector - 2 -.

- Reach under the backrest cover and find the release button pressure point - 3 -.






- Press the release button forward in the direction of the - arrow -.

- Hold the release button down in this position.

- Pull headrest - 2 - up out of guides - 1 - and - 4 -.








When removing the headrest, make sure the connector on the headrest side does not get stuck in the headrest guides or in the fixed cover cap.

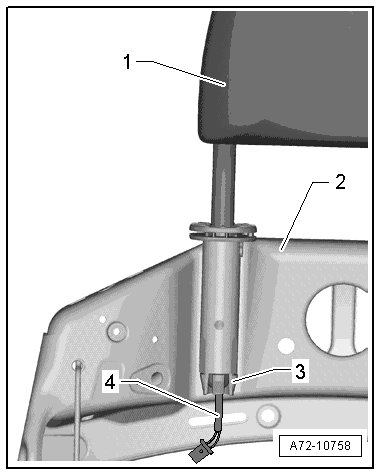

- When removing the headrest - 1 -, guide the wire with the connector - 4 - through the headrest guide - 3 -.

2 Backrest frame

Installing






Installation is reverse of removal, but note the following:

- When installing the headrest, the release button - 3 - must not be pressed in.
