Diagram 37/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

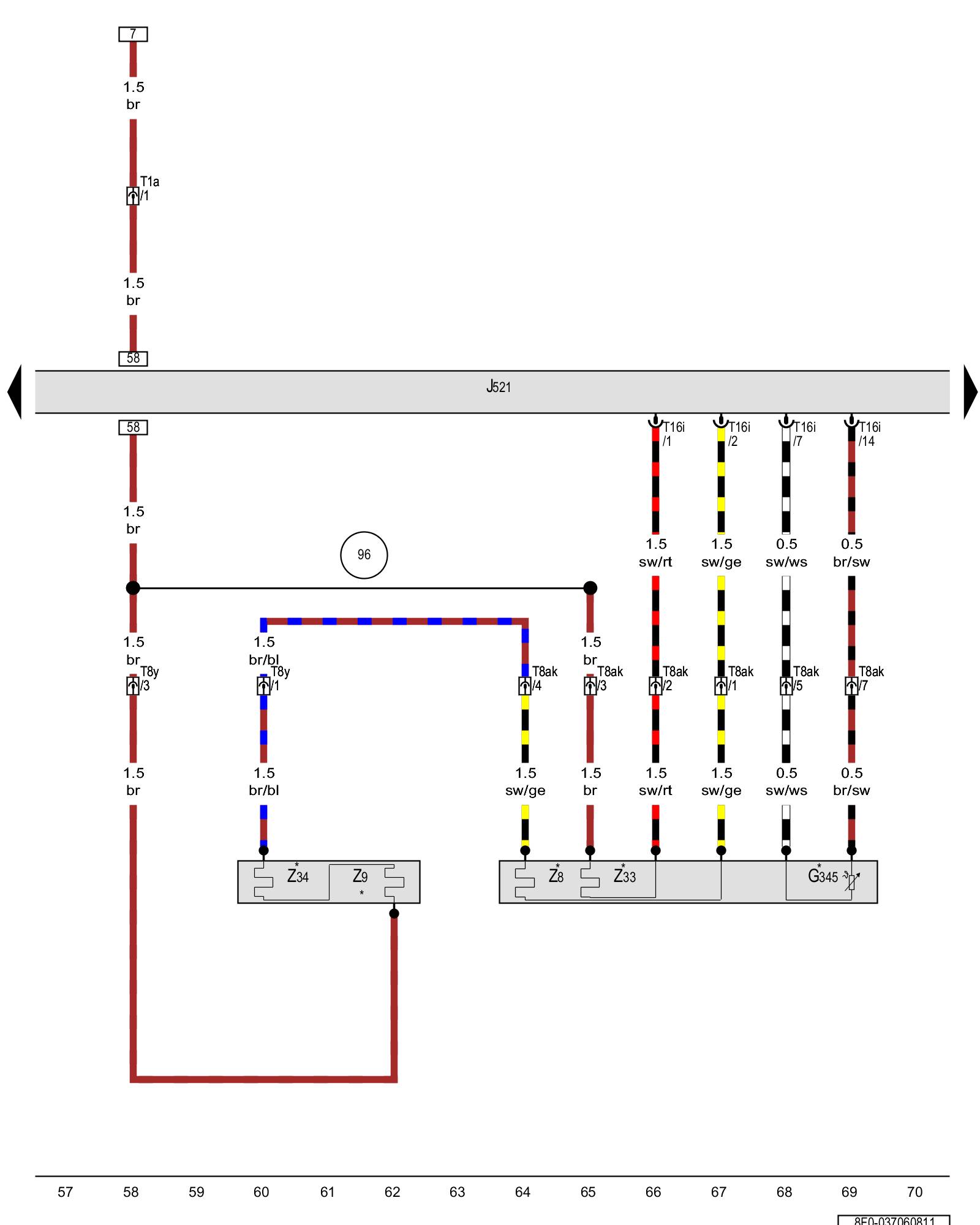

Right front seat temperature sensor, Front passenger memory seat control module, Front passenger seat heating element, Front passenger backrest heating element





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G345 - Right front seat temperature sensor Ventilation System

J521 - Front passenger memory seat control module Overview of Control Modules in interior of vehicle

T1a - Single connector, under the seat

T8ak - 8-pin connector

T8y - 8-pin connector

T16i - 16-pin connector Climatronic Control Module -J255-

Z8 - Front passenger seat heating element Seat Heater Components

Z9 - Front passenger backrest heating element Seat Heater Components

Z33 - Front passenger seat bolster heater Seat Heater Components

Z34 - Front passenger seat backrest bolster heater Seat Heater Components

(96) - Ground connection 1 (in heated seats wiring harness)

* - Only for vehicles with seat ventilation

Previous Diagram 37/5 (Tracks 43-56)

Next Diagram 37/7 (Tracks 71-84)
