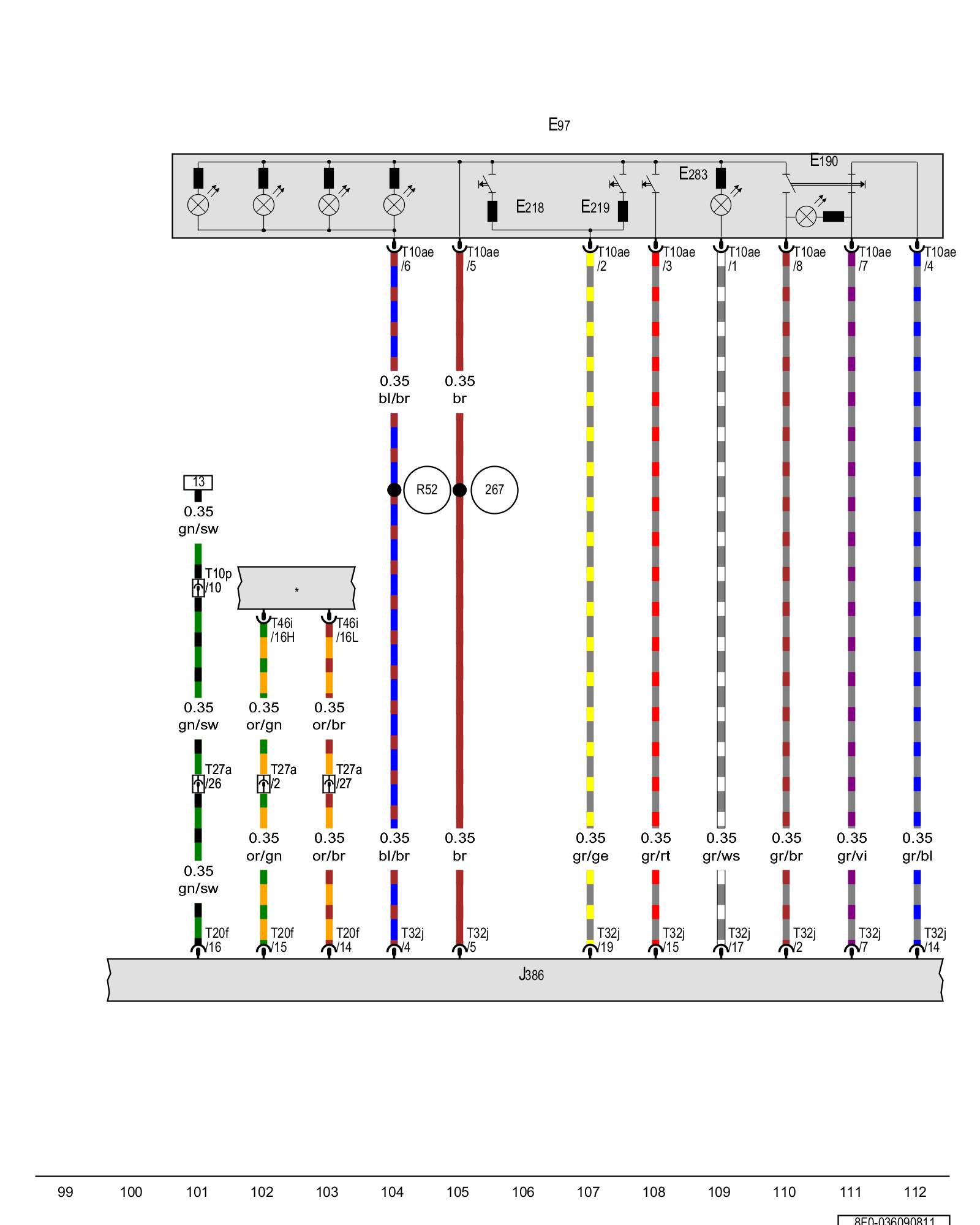

Diagram 36/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver memory seat control head, Emergency off button, Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E97 - Driver memory seat control head

E190 - Emergency off button

E218 - Memory seat position 1 button

E219 - Memory seat position 2 button

E283 - Driver seat memory button

J386 - Driver door control module Overview of Control Modules in interior of vehicle

T10ae - 10-pin connector

T10p - 10-pin connector, red Overview Of Connector Stations

T20f - 20-pin connector Front Passenger's Door Control Module -J387-

T27a - 27-pin connector, Left A-pillar, bottom

T32j - 32-pin connector Front Passenger's Door Control Module -J387-

T46i - 46-pin connector Overview Of Connector Stations

(267) - Ground connection 2 (in driver door wiring harness)

(R52) - Connection (58s) (in driver door wiring harness)

* - Refer to applicable wiring diagram for data bus networking
