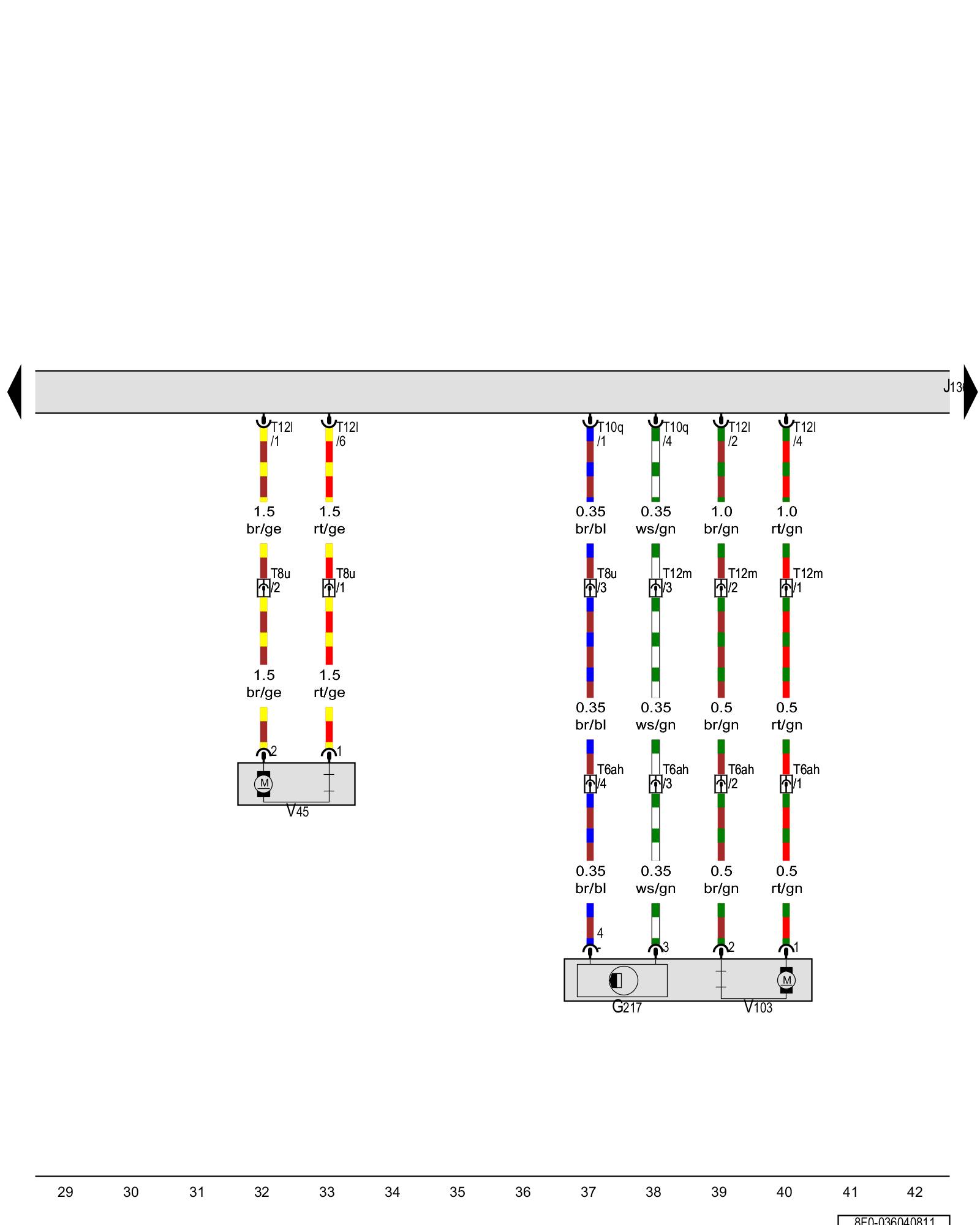

Diagram 36/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Memory seat/steering column adjustment control module, Driver backrest adjustment motor, Driver headrest adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G217 - Driver headrest height adjustment sensor Power Seat Component Overview

J136 - Memory seat/steering column adjustment control module Overview of Control Modules in interior of vehicle

T6ah - 6-pin connector, in the driver seat

T8u - 8-pin connector, in the driver seat

T10q - 10-pin connector

T12l - 12-pin connector

T12m - 12-pin connector, in the driver seat

V45 - Driver backrest adjustment motor Power Seat Component Overview

V103 - Driver headrest adjustment motor Power Seat Component Overview
