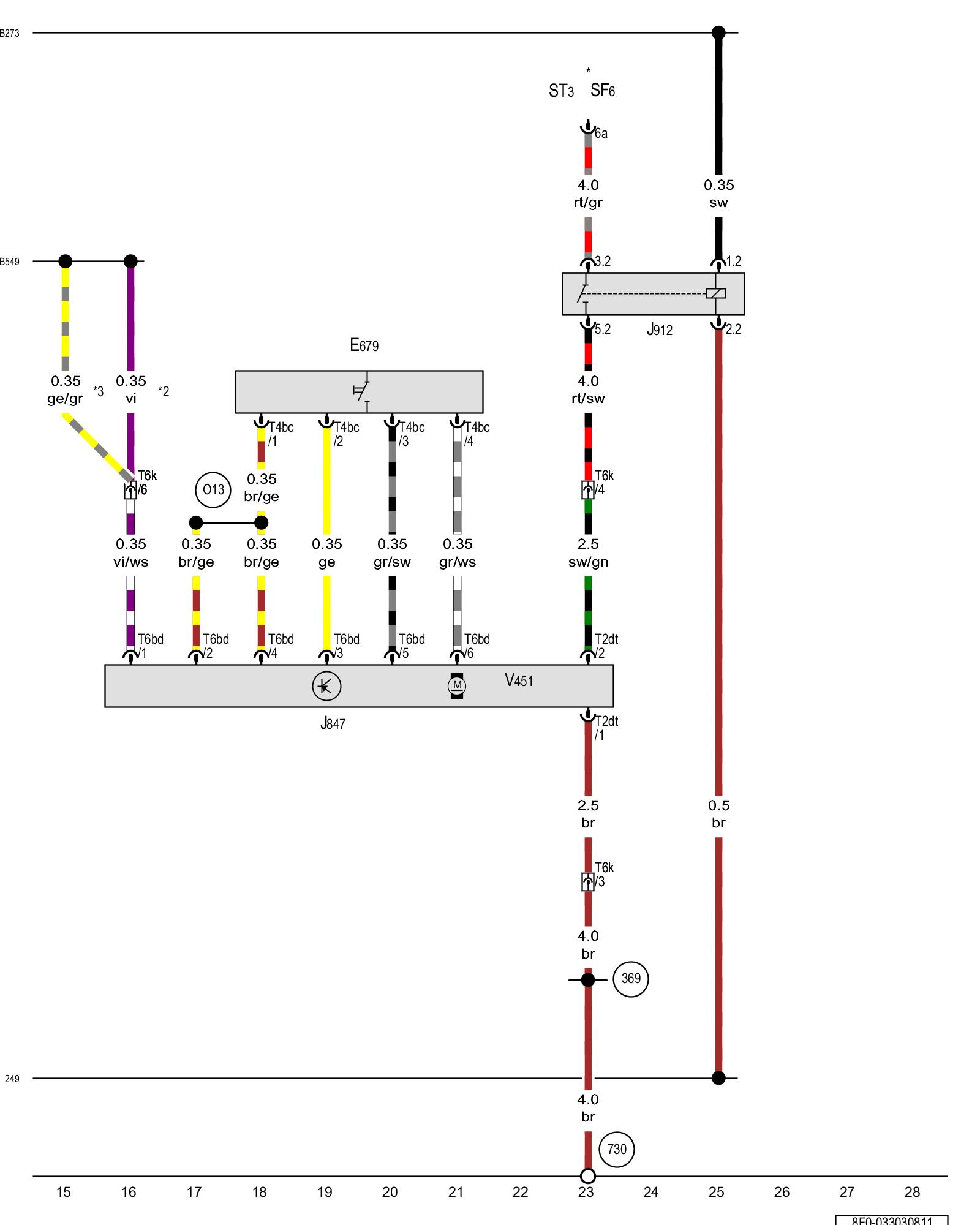

Diagram 33/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right head area heater control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E679 - Right head area heater switch

J847 - Right head area heater control module Power Seat Component Overview

J912 - Right head area heater relay Overview Of Relay

ST3 - Fuse panel 3

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

T2dt - Double connector

T4bc - 4-pin connector

T6bd - 6-pin connector

T6k - 6-pin connector Overview Of Connector Stations

V451 - Right head area heater fan Seat Cushion and Backrest Fan Assembly Overview

(249) - Ground connection 2 (in interior wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(730) - Ground connection 1 on right rear wheel housing

(B273) - Positive connection (15) (in main wiring harness)

(B549) - LIN bus connection 2 (in main wiring harness)

(O13) - Connection 2 (in heated seats wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Omitted as a running change

*3 - Running change

Previous Diagram 33/2 (Tracks 1-14)
