Trim, Variable Convertible Top Compartment Enclosure

Trim, Variable Convertible Top Compartment Enclosure

Removing






- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

- Support the convertible top with a suitable wood stick.

- Slide the trim - 1 - to the right and off the left mounting pin - 3 - - arrow A -.






- Disengage the trim downward and off the mounting pin - arrow B -.

- Remove the trim from the right bracket - 2 - - arrow C -.

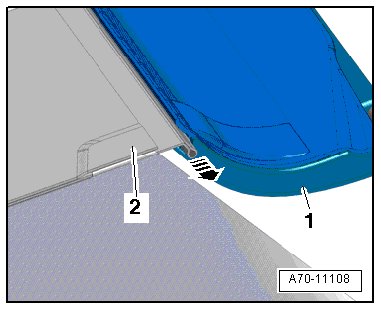

- Remove the variable convertible top compartment enclosure - 2 - from the trim - 1 - - arrow - and remove the trim.






Installing

To install, perform the steps used in removal in reverse order.
