Right Mounting Pin, Variable Convertible Top Compartment Enclosure

Right Mounting Pin, Variable Convertible Top Compartment Enclosure

Removing

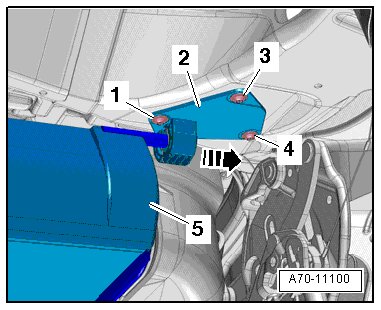

• The right bracket for the variable convertible top compartment enclosure is shown in the illustration without the luggage compartment trim panel.

- Press the variable convertible top compartment enclosure trim - 5 - upward until it engages.

- Remove screws - 1, 3, 4 -.

- Remove the bracket - 2 - from the trim - arrow -.

Installing

Installation is reverse of removal, but note the following:

- Make sure the centering pins on the bracket fit into the holes in the body.

For the correct tightening specifications, refer to => [ Variable Convertible Top Compartment Enclosure Assembly Overview ] Variable Convertible Top Compartment Enclosure Assembly Overview.
