Trim and Decorative Trim Strip Overview

Trim and Decorative Trim Strip Overview

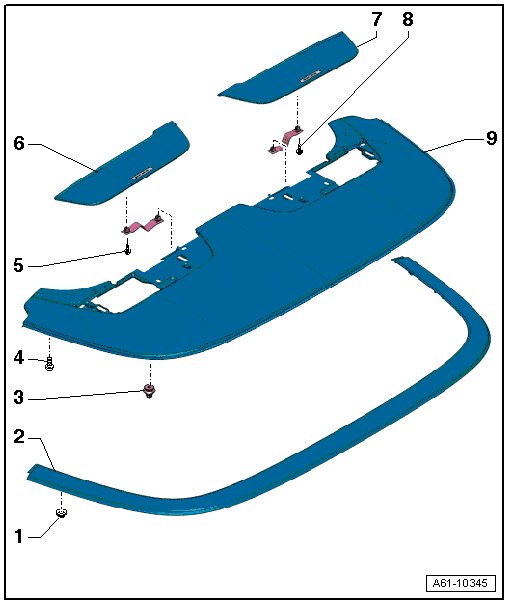

Convertible top compartment cover trim, decorative trim strip






1 Nut

• For the correct tightening specifications, refer to => [ Moldings and Trim Overview ] Moldings and Trim Overview.

2 Decorative Trim Strip

• For the convertible top compartment cover.

• Overview, refer to => [ Moldings and Trim Overview ] Moldings and Trim Overview.

3 Clip

• For the convertible top compartment cover trim.

4 Bolt

• 2 Nm

5 Bolt

• 2 Nm

6 Left Trim

• For the anti-roll bar.

• Removing and installing, refer to => [ Rollover Protection Trim ] Rollover Protection Trim.

7 Right Trim

• For the anti-roll bar.

• Removing and installing, refer to => [ Rollover Protection Trim ] Rollover Protection Trim.

8 Bolt

• 2 Nm

9 Trim

• For the convertible top compartment cover.

• Removing and installing, refer to => [ Trim ] Trim.

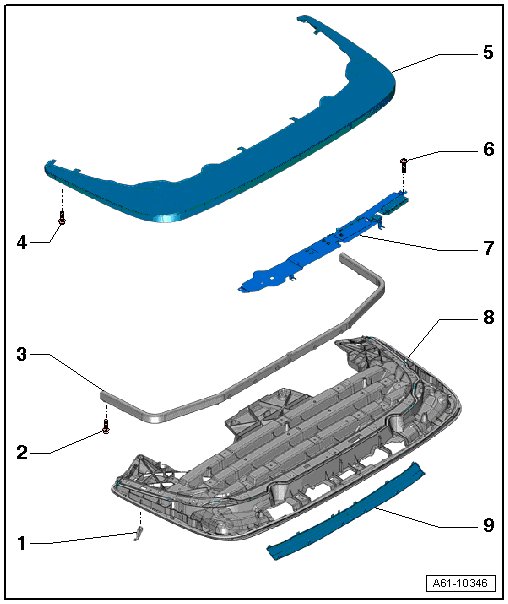

Convertible top compartment cover inner section, convertible top compartment cover outer section






1 Stop

• For the convertible top compartment cover inner section.

2 Bolt

• 2 Nm

3 Frame

• For the convertible top compartment cover inner section.

4 Bolt

• 2 Nm

5 Convertible Top Compartment Cover Outer Section

• Removing and installing, refer to => [ Outer Section ] Outer Section.

6 Bolt

• 2 Nm

7 Bracket

• For the antenna module.

8 Convertible Top Compartment Cover Inner Section

• Removing and installing, refer to => [ Cover ] Cover.

9 Service Cover

• For the antenna module.
