Headliner, Tension and Guide Cable Overview

Headliner, Tension and Guide Cable Overview

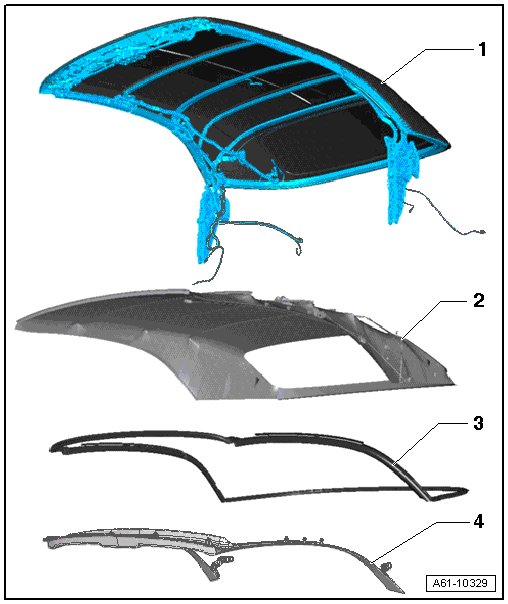

Convertible Top Headliner






1 Convertible Top Frame With Convertible Top Cover

2 Convertible Top Headliner

• Removing and installing, refer to => [ Headliner ] Headliner.

3 Convertible Top Seals

4 Convertible Top Frame Trim

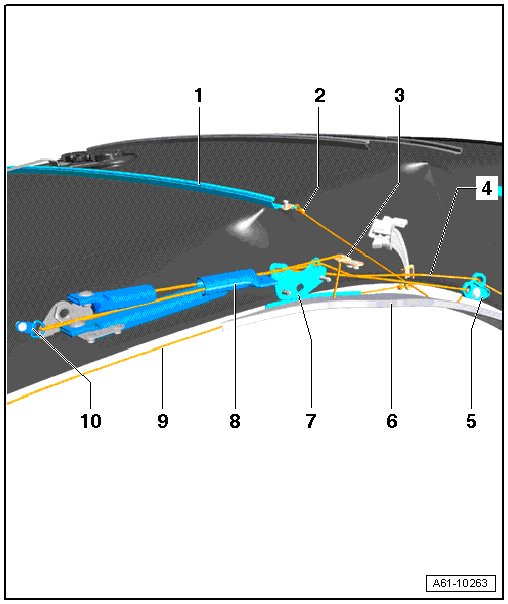

Front Tension and Guide Cables






1 "Rail 2"

2 Center Guide Cable

• For C-pillar door

3 Diverting Eye For The Front Guide Cable

• On the C-pillar door near "Rail 2"

4 Rear Guide Cable

• For C-pillar door

5 Diverting Eye For The Center Guide Cable

• Rear on the C-pillar door

6 C-pillar Door

7 Front Guiding Eye

8 Convertible Top Cover Tensioning Cable

9 Front Diverting Eye

For C-pillar door guide cable

10 Front Guiding Eye

Rear Tension and Guide Cables






1 Center Guide Cable

For C-pillar door

2 Tensioning Band

3 Tension Cable

For C-pillar door

4 Guide Cable Diverting Eye

5 Rear Window Control Tension Cable

6 Tensioning Band

7 Tension Cable Pull-Spring

8 C-pillar Door

• Not a replacement part, part of the convertible top headliner service kit.

9 Tension Cable

10 Diverting Eye

• Center and rear guide cable on the C-pillar door.

11 Front Guiding Eye
