Convertible Top, End Plate

End Plate

Removing






- Remove the roof frame trim..

- Disconnect and free up the electrical connector and wire.

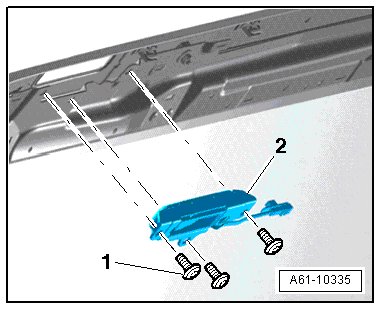

- Remove the bolts - 1 - and then remove the end plate - 2 -.

Installation

• Tightening specifications, refer to => [ Latch Overview ] Latch Overview.

Install in reverse order of removal. Note the following:

- Insert the roof frame trim panel..
