Rear Convertible Top Compartment Trim Assembly Overview

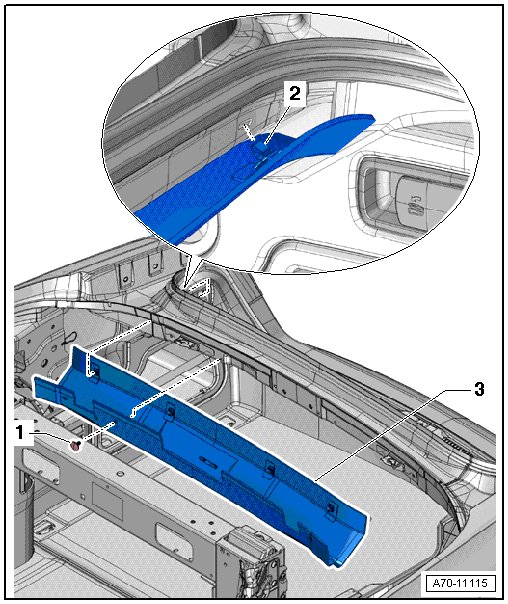

Rear Convertible Top Compartment Trim Assembly Overview






1 Expanding Clip

• Quantity: 4

2 Clips

• Quantity: 4

3 Rear Convertible Top Compartment Trim

• Removing and installing, refer to => [ Rear Convertible Top Compartment Trim ] Rear Convertible Top Compartment Trim
