Emergency Release

Emergency Release

Removing






- Open the cover in the luggage compartment side trim panel.

- Disconnect the connector from the convertible top compartment cover switch (F291) / (F290).

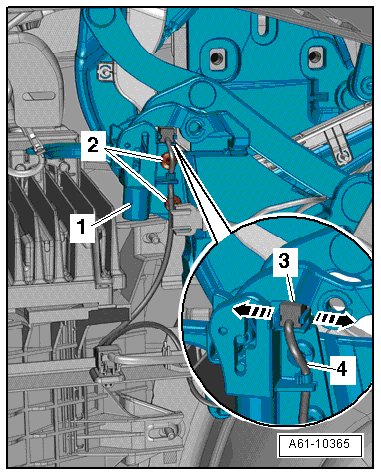

- Free up the wiring harness - 4 - from the convertible top compartment cover emergency release.

- Open the clips - arrows - and remove the convertible top compartment open switch - 3 - from its mount.

- Remove the screws - 2 - and remove the convertible top compartment cover emergency release - 1 -.

Installation

• Tightening specifications, refer to => [ Hinge and Hydraulic Cylinder Overview ] Hinge and Hydraulic Cylinder Overview.

Install in reverse order of removal.
