Left Convertible Top Compartment Enclosure Motor -V433-







Control modules in interior and rear part ofvehicle

Left Convertible Top Compartment Enclosure Motor -V433-

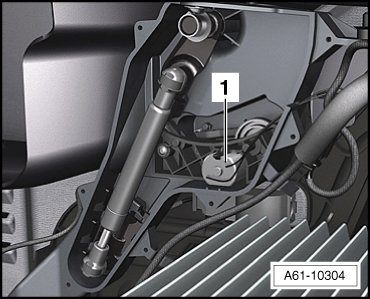

Component Location:





In left luggage compartment, behind side panel trim
1 - Left Convertible Top Compartment Enclosure Motor -V433-
