Left and Right Rear Door Control Modules (J388)/(J389)

Left and Right Rear Door Control Modules (J388)/(J389)

Removing






- Remove the luggage compartment side trim..

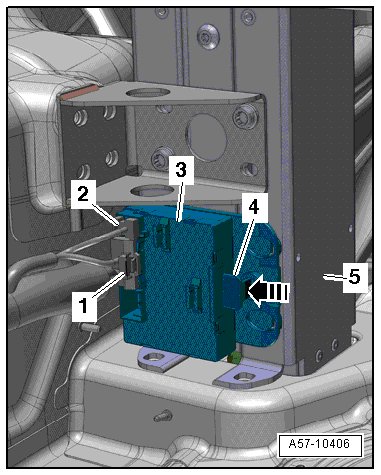

- Press the release downward and disconnect the connector - 1 -.

- Disconnect electrical harness connector - 2 -.

- Press the retaining detent - 4 - in - direction of arrow - and disengage the door control module - 3 - on the anti-roll bar - 5 -.

Installation

Installation is reverse of removal, but note the following:

- Install the luggage compartment trim panel..
