Right Rear Door Control Module -J389-







Control modules in interior and rear part ofvehicle

Right Rear Door Control Module -J389-

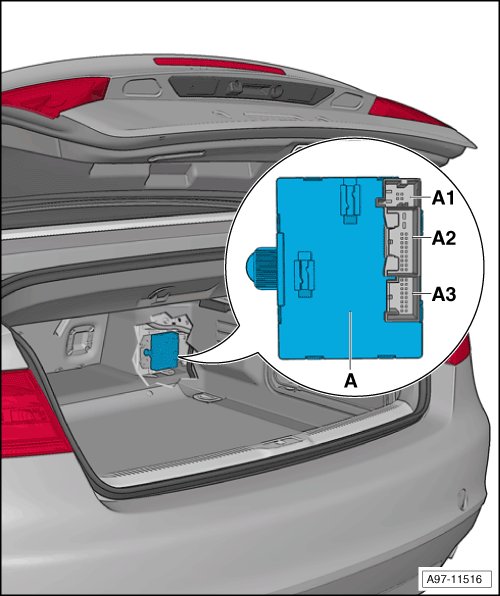

Component Location:
Behind right luggage compartment separating panel.





A - Right Rear Door Control Module -J389-

A1 - 6-Pin Connector -T6av-

A2 - 20-Pin Connector -T20i-

A3 - Not used
