Left Rear Door Control Module -J388-







Control modules in interior and rear part ofvehicle

Left Rear Door Control Module -J388-

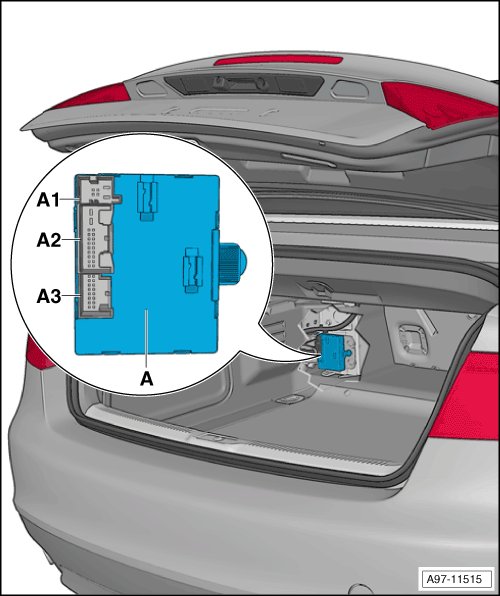

Component Location:
Behind left luggage compartment separating panel.





A - Left Rear Door Control Module -J388-

A1 - 6-Pin Connector -T6au-

A2 - 20-Pin Connector -T20h-

A3 - Not used
