Mirror Adjusting Unit

Mirror Adjusting Unit

Removing






- Remove mirror glass. Refer to => [ Mirror Glass ] Mirror Glass.

- Remove the screw - 1 - for the mirror adjusting unit - 2 -.

- Release the retaining tabs - arrows - and remove the mirror adjusting unit.

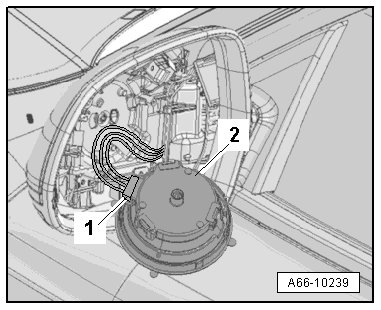

- Disconnect the electrical connector - 1 - on the mirror adjusting unit - 2 -.






Installation

• Tightening specifications, refer to => [ Exterior Rearview Mirror Overview ] Exterior Rearview Mirror Overview.

Installation is reverse of removal, but note the following:

- Press the mirror adjusting unit onto the mirror mount until it engages audibly.
