Lock Cylinder Guide

Lock Cylinder Guide

Removing






- Remove lock cylinder. Refer to => [ Lock Cylinder ] Lock Cylinder.

- Remove the door trim..

- Remove the door shell cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover.

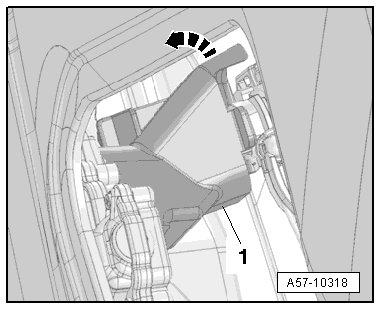

- Tilt the lock cylinder guide - 1 - up as far as the stop - arrow -.

- Remove the lock cylinder guide.

Installation






Installation is reverse order of removal, but note the following:

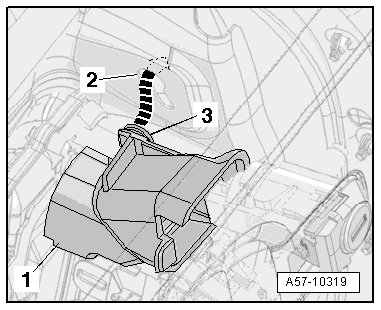

- When inserting the lock cylinder guide - 1 -, make sure the anti-twist mechanism - 3 - engages in the mount - 2 - on the door shell - arrow -.

- Install the door shell cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover.

- Install the door trim..

- Install the lock cylinder. Refer to => [ Lock Cylinder ] Lock Cylinder.
