Steering Column Switch Module Upper Trim Panel

Steering Column Switch Module Upper Trim Panel

Removing






- Move the steering wheel as far down as possible.

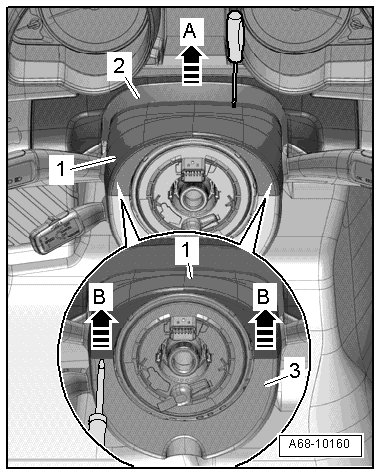

- Using a small flat-head screwdriver, carefully unclip gap cover - 2 - from upper steering column switch module trim - 1 - - arrow A -.

- Rotate the steering wheel 90° out of the straight position.

- Carefully pry the upper steering column switch module trim off of lower trim - 3 - using a small flat-head screwdriver - B arrows -.

- Disengage the upper steering column switch module trim from the lower trim and remove it.

Installing






Installation is reverse of removal, but note the following:

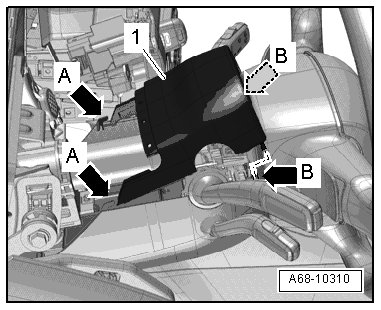

- Engage the upper trim - 1 - in the lower trim - A arrows -.

- Ensure the lower trim pins engage in the opening at the upper trim retaining tab - B arrows -.
