Glove Compartment With Knee Airbags

Glove Compartment with Knee Airbags

Removing






- Remove the passenger knee airbag. Refer to => [ Front Passenger Knee Airbag Igniter ] Front Passenger Knee Airbag Igniter.

- Vehicles with a storage compartment inside the glove compartment: Release the tabs on the left and right sides with a screwdriver - arrow - and then remove the storage compartment from the glove compartment.

- Vehicles with a CD player: remove the CD player.

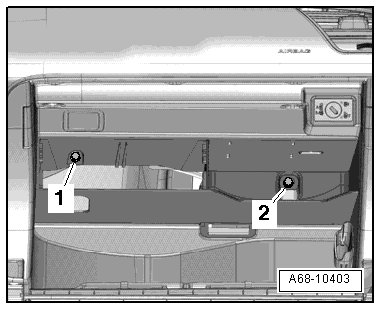

- Remove the upper diagonal bolt - 1 - and the right bolt - 2 -.






- Remove the side cover on the passenger side instrument panel. Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.






- Open the glove compartment cover and remove the screws - arrows -.

- Remove the glove compartment far enough so the electrical connector on the central connector can be disconnected.

- Vehicles with an external audio source connection (R199) : remove the external audio source connection (R199).

Installing

To install, perform the steps used in removal in reverse order.

For the correct tightening specifications, refer to => [ Glove Compartment Assembly Overview ] Glove Compartment Assembly Overview.
