Glove Compartment Opener

Glove Compartment Opener

Special tools, testers and auxiliary items required

• Locking Pin (T40011)

Removing

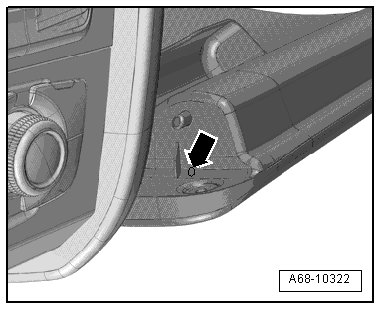

- Release the glove compartment opener retaining hooks using a (T40011) through the opening - arrow - on the side of the glove compartment cover.

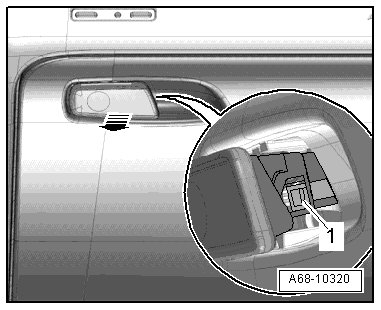

- Release the second retaining hook - 1 - on the side of the glove compartment opener at the same time using a screwdriver.






- Remove the glove compartment opener from the glove compartment cover - arrow -.

Installing

- Press the glove compartment cover in until it engages audibly.
