Glove Compartment Lid

Glove Compartment Lid

Removing






- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment.

- Remove the hinge pin from the brake component. Refer to => [ Glove Compartment Cover Brake Component ] Glove Compartment Cover Brake Component.

- Disconnect the connector for the glove compartment lock motor (V224).

- Set the glove compartment down with the top side on a soft surface.

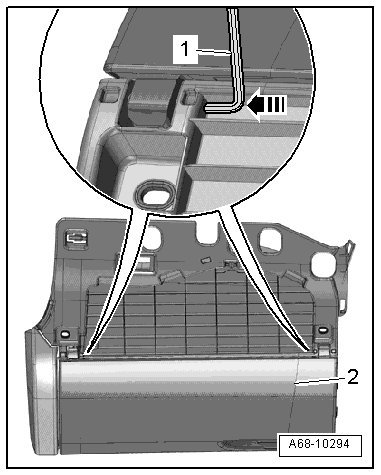

- Drive the left and right hinge pins out using a 2 mm hex socket wrench - 1 - (or another suitable tool) - arrow -.

- Remove glove compartment cover - 2 - from the glove compartment.

Installing

To install, perform the steps used in removal in reverse order.
