Glove Compartment

Glove Compartment

Removing

- Switch the ignition on.

- Disconnect the battery ground cable with the ignition switched on.

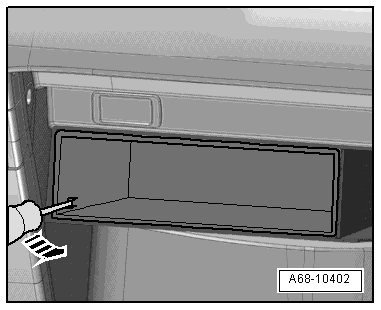

- Vehicles with a storage compartment inside the glove compartment: Release the tabs on the left and right sides with a screwdriver - arrow - and then remove the storage compartment from the glove compartment.






- Vehicles with a CD player: remove the CD player.

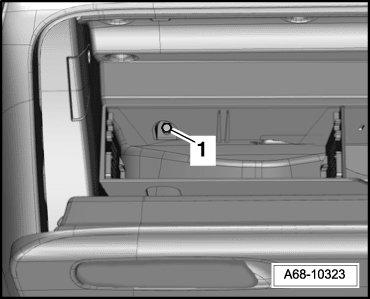

- Remove the upper diagonal bolt - 1 -.






- Remove the side instrument panel cover on the passenger side. Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.

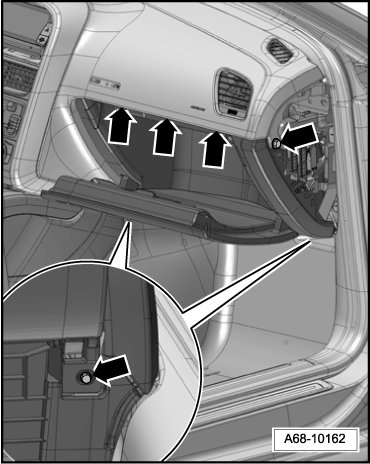

- Open the glove compartment cover and remove the screws - arrows -.

Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the glove compartment far enough so the electrical connector on the central connector can be disconnected.

- Vehicles with an external audio source connection (R199) : remove the external audio source connection (R199).

Installing

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• Make sure the connectors are installed all the way in and are secure.

Installation is reverse of removal, but note the following:

- Press the electrical connector together until it engages audibly.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect the battery ground cable with the ignition turned on.

• If the airbag indicator lamp (K75) indicates a fault after installation, the Diagnostic Trouble Code (DTC) memory must be checked, deleted and checked again using the vehicle diagnostic tester.

For the correct tightening specifications, refer to => [ Glove Compartment Assembly Overview ] Glove Compartment Assembly Overview.
