Luggage Compartment Floor Mat Assembly Overview

Luggage Compartment Floor Mat Assembly Overview

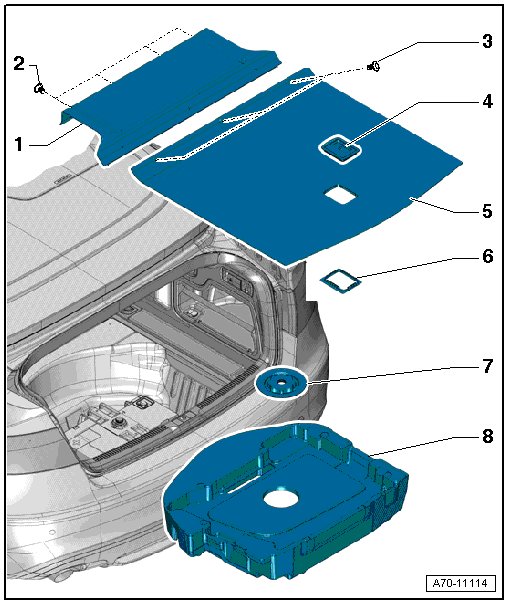

1 Front Luggage Compartment Floor Covering

• Removing and installing, refer to => [ Front Luggage Compartment Covering ] Front Luggage Compartment Covering

2 Expanding Clip

• Quantity: 4

3 Expanding Clip

• Quantity: 3

4 Bracket

• For the luggage compartment floor mat

• Removing and installing, refer to => [ Rear Luggage Compartment Floor Covering Bracket ] Rear Luggage Compartment Floor Covering Bracket

5 Rear Luggage Compartment Floor Covering

• Removing and installing, refer to => [ Rear Luggage Compartment Floor Covering ] Rear Luggage Compartment Floor Covering

6 Mounting Bracket

• For luggage compartment floor covering retainer

• Removing and installing, refer to => [ Rear Luggage Compartment Floor Covering Bracket ] Rear Luggage Compartment Floor Covering Bracket

7 Nut

• For the spare wheel mounting

• When tightening, it must audibly click into place, otherwise, turn some more

8 Vehicle Tool Kit
