Side Trim Panel Insert

Side Trim Panel Insert

• Removal and installation are same for right and left.

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing






- Remove the trim panel. Refer to => [ Trim Molding ] Trim Molding.

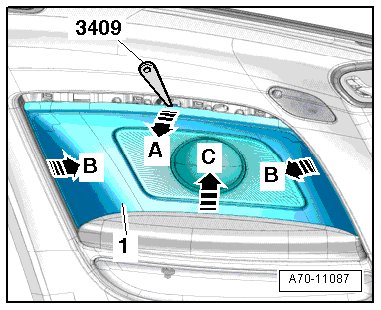

- Starting at the top unclip the side trim panel insert - 1 - using the (3409) - arrow A - and - arrows B -.

- Remove the insert - arrow C -.

Installing

Installation is reverse of removal, but note the following:

- First engage the insert in the side trim panel at the bottom and then press on it until it audibly engages.
