Belt Extraction Panel

Belt Extraction Panel

• Removal and installation are same for right and left.

Removing






- Remove side trim. Refer to => [ Side Trim ] Side Trim.

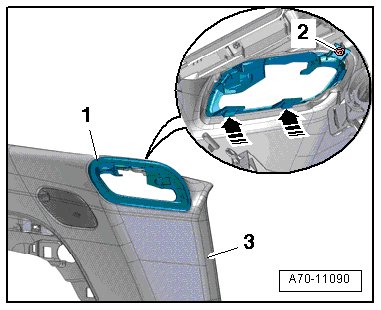

- Remove the screw - 2 - behind the side trim panel - 3 -.

- Release the hooks - arrows - and remove the seat belt extraction panel - 1 - from the side trim panel.

Installing

To install, perform the steps used in removal in reverse order.

For the correct tightening specifications, refer to => [ Side Trim Assembly Overview ] Side Trim Assembly Overview.
