Sun Visor

Sun Visor

• Removal and installation are same for right and left.

Removing

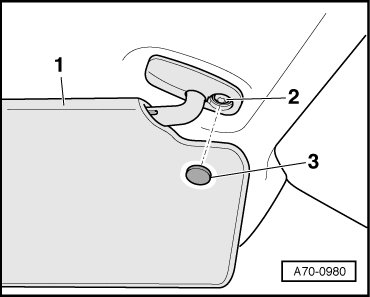

- Disengage the sun visor - 1 - in the center of the vehicle from the center bracket.

- Pry off the cap - 3 - with a screwdriver.

- Remove the bolt - 2 -.

- Swing visor bearing down and remove sun visor.

- Vehicles with illumination: Disconnect the connector and remove the sun visor.

Installing

Installation is reverse of removal, but note the following:

- The sun visor cannot be installed until the roof trim has been completely clipped in.

- Replace screws.

- Engage the sun visor bracket tab in the opening in the headliner.

- Press the cap until it engages completely.

For the correct tightening specifications, refer to => [ Sun Visor Assembly Overview ] Sun Visor Assembly Overview.
