Left Impact Absorber

Left Impact Absorber

Removing






- Remove the driver side instrument panel cover. Refer to => [ Driver Side Instrument Panel Cover ] Driver Side Instrument Panel Cover.

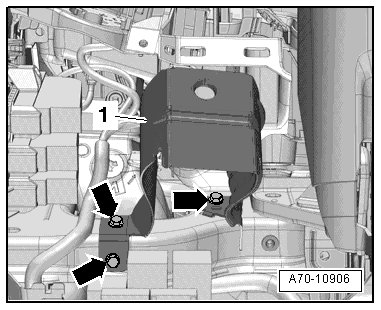

- Remove the bolts - arrows -.

- Remove the left impact absorber - 1 - downward.

Installing

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview ] Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview.
