Glove Compartment Bracket

Glove Compartment Bracket

Removing

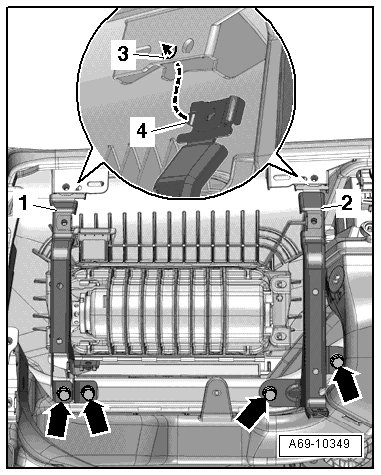

- Remove the bolts - arrows -.

- Remove the left - 1 - and right - 2 - glove compartment brackets.

• The number of brackets depends on the version.

Installing

- Position both glove compartment brackets so that tab - 4 - engages in hole - 3 - in the instrument panel.

Further installation is performed in the reverse order of removal.

For the correct tightening specifications, refer to => [ Instrument Panel Central Tube Assembly Overview ] Instrument Panel Central Tube Assembly Overview.
