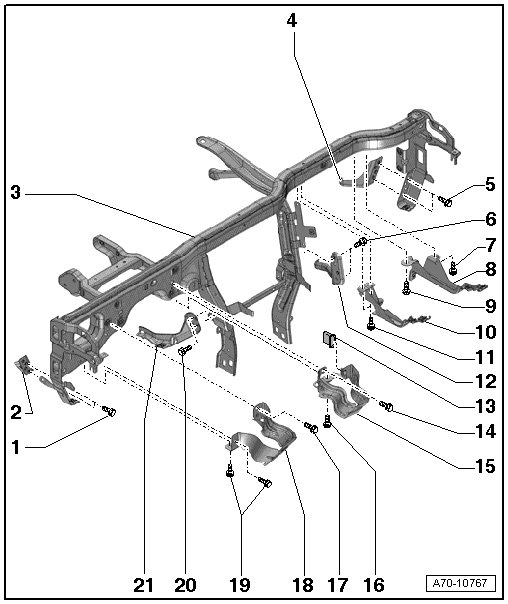

Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview

Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview






1 Bolt

• Quantity: 2

• 9 Nm

2 Left retainer

• For the driver knee airbag

• Removing and installing, refer to => [ Driver Knee Airbag Left Bracket ] Driver Knee Airbag Left Bracket

3 Central Tube

4 Right retainer

• For the passenger knee airbag

• Removing and installing, refer to => [ Passenger Knee Airbag Right Bracket ] Passenger Knee Airbag Right Bracket

5 Bolt

• Quantity: 2

• 9 Nm

6 Bolt

• Quantity: 2

• 9 Nm

7 Bolt

• 9 Nm

8 Right retainer

• For the glove compartment

• Removing and installing, refer to => [ Glove Compartment Bracket ] Glove Compartment Bracket

9 Bolt

• 9 Nm

10 Left retainer

• For the glove compartment

• Removing and installing, refer to => [ Glove Compartment Bracket ] Glove Compartment Bracket

11 Bolt

• Quantity: 2

• 9 Nm

12 Left retainer

• For the passenger knee airbag

• Removing and installing, refer to => [ Passenger Knee Airbag Left Bracket ] Passenger Knee Airbag Left Bracket

13 Grommet

• Installed on the impact absorber - 15 -

14 Bolt

• 9 Nm

15 Right shock absorber

• Removing and installing, refer to => [ Right Impact Absorber ] Right Impact Absorber

16 Bolt

• 9 Nm

17 Bolt

• 9 Nm

18 Left shock absorber

• Removing and installing, refer to => [ Left Impact Absorber ] Left Impact Absorber

19 Bolt

• Quantity: 2

• 9 Nm

20 Bolt

• Quantity: 2

• 9 Nm

21 Right retainer

• For the driver knee airbag

• Removing and installing, refer to => [ Driver Knee Airbag Right Bracket ] Driver Knee Airbag Right Bracket
