Front Center Armrest Upholstery

Front Center Armrest Upholstery

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

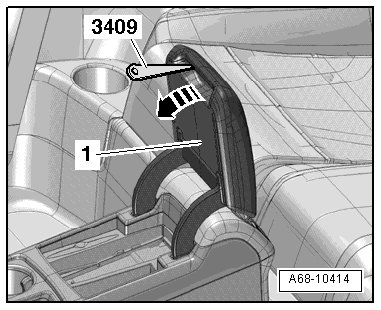

- Carefully unclip the cover - 1 - from the upholstery - arrow - using the (3409).

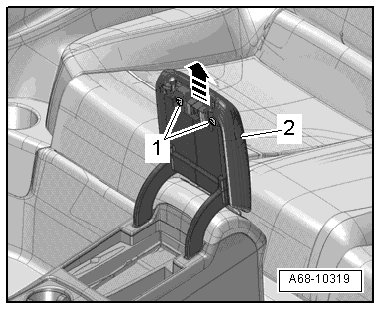

- Remove the bolts - 1 - and the upholstery - 2 - upward from the hinge arm - arrow -.






Installing

Installation is reverse of removal, but note the following:

- Engage the upholstery on the hinge arm and tighten the bolts.

- Press the cover on until it engages audibly.

Tightening specifications, refer to => [ Front Center Armrest Assembly Overview ] Front Center Armrest Assembly Overview.
