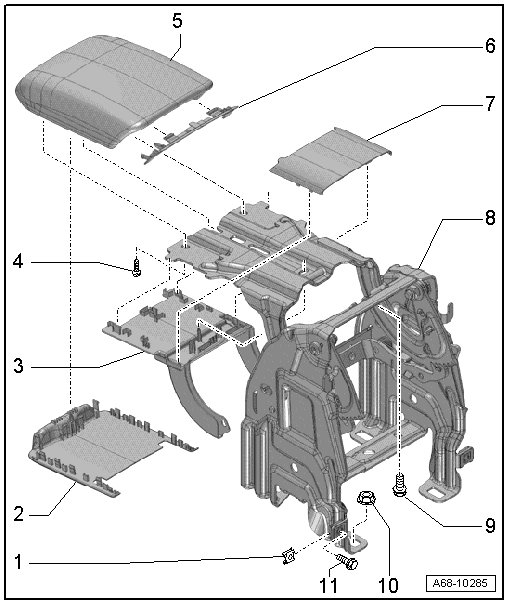

Front Center Armrest Assembly Overview

Front Center Armrest Assembly Overview






1 Threaded Clip

• Quantity: 2

2 Cover

• Clipped with - item 5 -

3 Lower Trim

• For the hinge arm

• Clipped with - item 7 - and - item 8 -

• Removing and installing, refer to => [ Hinge Arm Trim ] Hinge Arm Trim

4 Bolt

• Quantity: 2

• 2.2 Nm

5 Padding

• Removing and installing, refer to => [ Front Center Armrest Upholstery ] Front Center Armrest Upholstery

6 Trim

7 Upper Trim

• For the hinge arm

• Clipped with - 3 -

• Removing and installing, refer to => [ Hinge Arm Trim ] Hinge Arm Trim

8 Support Base

• Removing and installing, refer to => [ Front Center Armrest ] Front Center Armrest

9 Bolt

• Quantity: 2

• 3 Nm

10 Nut

• Quantity: 4

• 20 Nm

11 Bolt

• Quantity: 2

• 3 Nm
