Aerodynamic Trim Panels Overview

Aerodynamic Trim Panels Overview

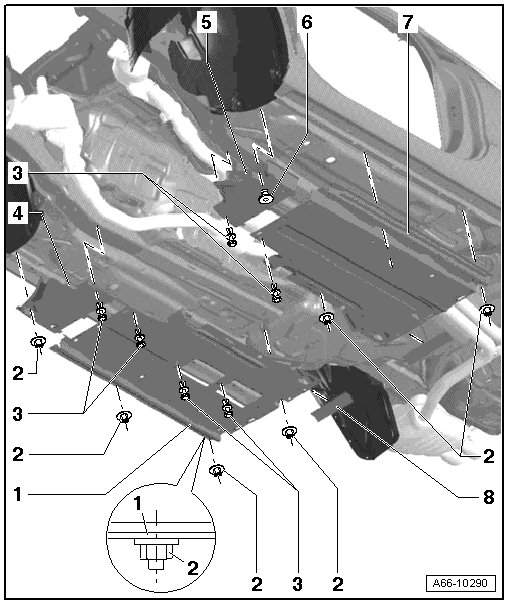

Front aerodynamic trim panel






1 Right Aerodynamic Trim Panel

2 Nut

• 2 Nm

• Quantity 7 on left

3 Spreader Clip

4 Right Front Aerodynamic Trim Panel

5 Left Front Aerodynamic Trim Panel

6 Nut

• 2 Nm

• Quantity 8 on the right

7 Left Aerodynamic Trim Panel

8 Heel Plate Spoiler

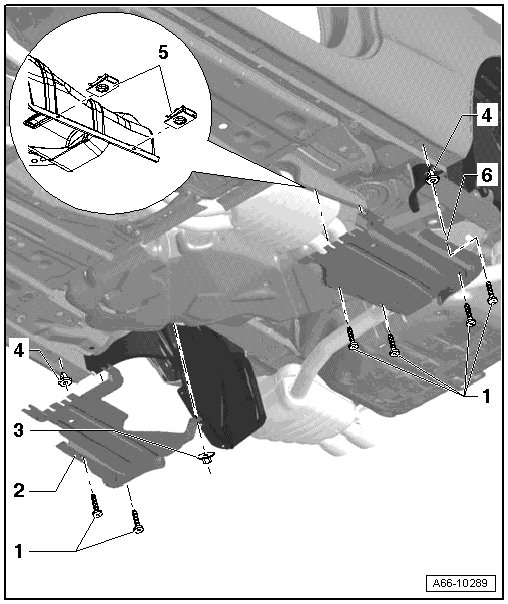

Rear Aerodynamic Trim Panel






1 Bolt

• 3.5 Nm

2 Right Wheel Spoiler

3 Nut

• 2 Nm

4 Clip

5 Spring Nut

6 Left Wheel Spoiler

• Slide wheel spoiler in under wheel housing liner as shown

- Loosen wheel housing liner in wheel spoiler area and move to side.

- Remove bolt - 2 - and nut - 3 - and remove wheel spoiler.

7 Rear Wheel Housing Liner

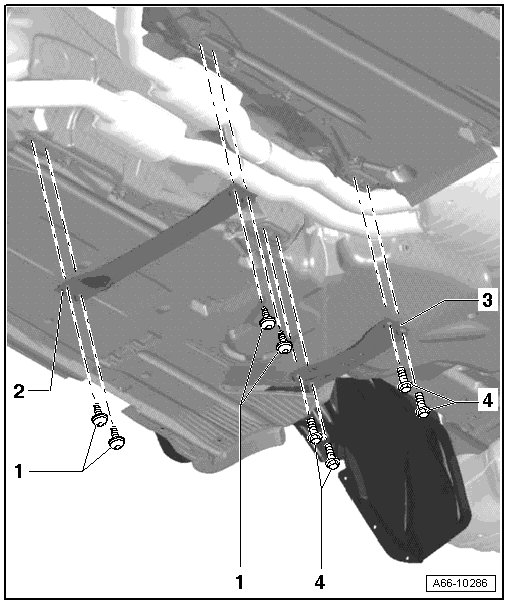

Tunnel Crossmember






1 Bolt

• 55 Nm

2 Front Crossmember

3 Rear Crossmember

• With integrated spoiler.

4 Bolts

• 55 Nm
