Rear Luggage Compartment Floor Covering Bracket

Rear Luggage Compartment Floor Covering Bracket

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (3409)

Removing






- Remove the rear luggage compartment floor covering. Refer to => [ Rear Luggage Compartment Floor Covering ] Rear Luggage Compartment Floor Covering.

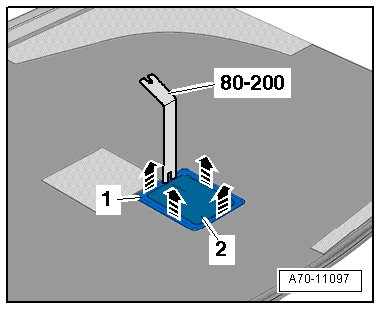

- Release the mounting bracket - 1 - using the (80 - 200) - arrows -.

- Disengage mounting bracket and remove the rear luggage compartment floor covering retainer - 2 -.

Installing

Installation is reverse of removal, but note the following:

- Mounting bracket can be pressed down in one position on luggage compartment floor covering retainer.
