Fuel Filler Door Cup Trim

Fuel Filler Door Cup Trim

Removing






- Open the fuel filler door.

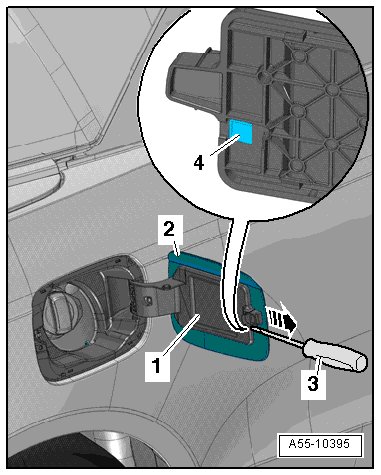

- Open the clip - 4 - in the opening between the trim - 2 - and the tank flap cup - 1 - with a screwdriver - 3 -.

- Pull the trim just little from the tank flap cup - arrow - and remove it.

Installation






Installation is reverse of removal, but note the following:

- The guides on the trim - 2 - must fit behind the mounts when it is installed on the tank flap cup - 1 - - arrows -, as illustrated.

- Slide the trim forward until the clips audibly engage.

- Check the gap dimensions. Refer to => [ Tank Door Gap Dimensions ] .
