Treble Speaker Bracket

Treble Speaker Bracket

• Removal and installation are same for right and left.

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing






- Remove the treble speaker trim. Refer to => [ Treble Speaker Trim ] Treble Speaker Trim.

- Vehicles with treble speakers: Remove the treble speaker.

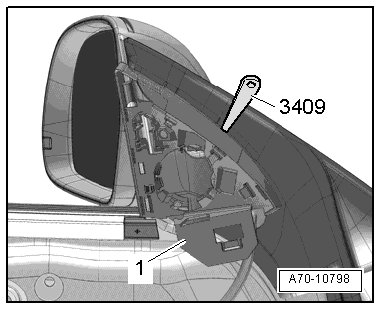

- Carefully pry the treble speaker bracket - 1 - off the door using the (3409) and remove it.

Installing

Installation is reverse of removal, but note the following:

- Press the treble speaker bracket on until it engages audibly.
