CD Changer: Locations







Control modules in interior and rear part ofvehicle

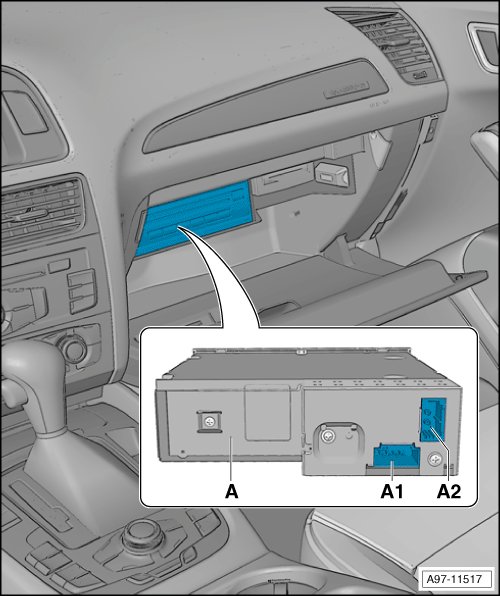

CD Changer -R41- /DVD Changer -R161-


Component Location:
In glove compartment





A - CD Changer -R41- /DVD Changer -R161-

A1 - 8-Pin Connector -T8aa-

A2 - Double Connector -T2dm-
