MMI CD Changer (R41) Connectors

MMI CD Changer (R41) Connectors

CD Changer

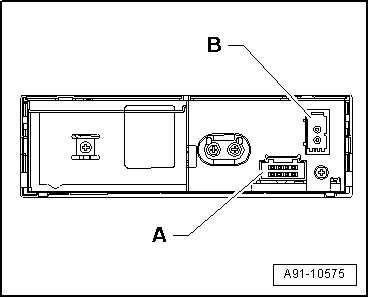

A 8-pin multi-pin connector (T8aa)
B MOST bus

• Unlisted connector terminals are not used.

A - 8-Pin Connector (T8aa)





1 Terminal 31
2 Terminal 30
4 Terminal 31 (MMI basic only)
5 Ring-break diagnostic cable

B - MOST Bus





1. IN

2. OUT
