MMI Minimum Equipment Overview

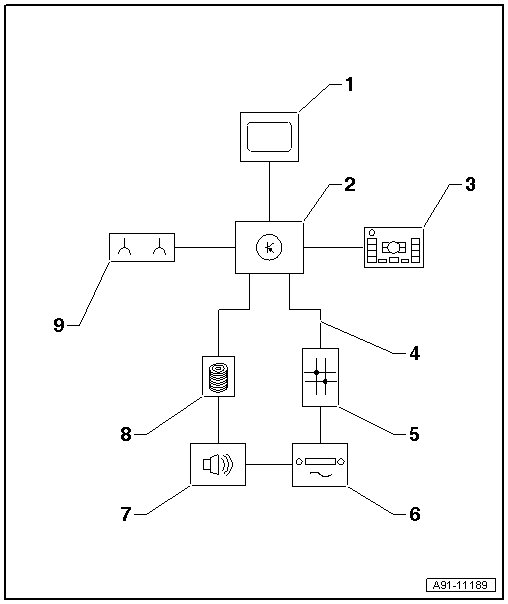

MMI Minimum Equipment Overview
1 Front Information Display Control Head (J685) in Center of the Instrument Panel
2 Information Electronics Control Module 1 (J794) inside the Instrument Panel
3 Multimedia System Control Head (E380) in the Center Console
4 MOST Bus
5 Data Bus On Board Diagnostic Interface (J533) behind Glove Compartment on the Left Side
6 Radio (R) behind the Left Luggage Compartment Left Side Trim
7 Digital Sound System Control Module (J525) behind the Luggage Compartment Left Side Trim
8 CD Changer (R41) inside the Glove Compartment
9 External Audio Source Connection (R199) (AUX IN socket) in the Center Console Storage Compartment
