External Audio Source Connection (R199) Inside Glove Compartment

External Audio Source Connection (R199) Inside Glove Compartment

The external audio source connection is installed in the glove compartment.

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

- Turn off all electrical consumers.

- Remove the key.

Removing

- Open the glove compartment.

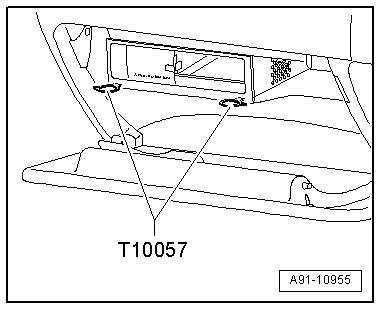

- Insert the two clips of the (T10057) into the slits on the external audio source connection until they engage. Points on the grip eyelets of tool face outward.






- Pull external audio source connection out of mounting frame.

- Disconnect all of the connectors from the external audio source connection.

- Remove the (T10057) , push locking tabs on external audio source connection to do so.

Remove the Internal Control Module

- Remove the screw - 2 - on back side (2 Nm).






- Press the tabs - 4 and 5 - down then up and remove the control module from the frame - 1 -.

Installing

- Connect all harness connectors.

- Slide the external audio source connection on the mounting frame until it engages.

Assembly overview, refer to => [ Radio System ] Radio System
