Collision Avoidance and Parking Assist Systems: Testing and Inspection
Calibration Tool for Lane Changing Assist (VAS 6350/4) Installing and Aligning
Special tools, testers and auxiliary items required
• Calibration Tool for Lane Changing Assist (VAS 6350)
• Vehicle diagnostic tester
The (VAS 6350) includes the following special tools:
• Wheel Center Sensor (VAS 6350/1)
• Spacing Laser (VAS 6350/2)
• Line Laser (VAS 6350/3)
• Calibration Tool for Lane Changing Assist (VAS 6350/4)

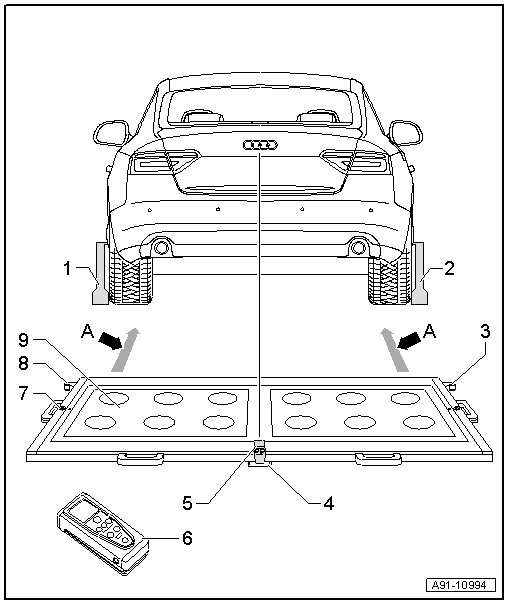

Installed (VAS 6350) Overview
1 Wheel Center Sensor (VAS 6350/1)
2 Wheel Center Sensor (VAS 6350/1)
3 Right Angle Bracket
• Spacing laser (VAS 6350/2) mount
4 Plastic Foot
• Three on the underbody of the (VAS 6350/4)
• Adjustable in order to adjust horizontal position of (VAS 6350/4)
5 Line Laser (VAS 6350/3)
• On the calibration tool for lane changing assist (VAS 6350/4)
• Switching on and off see operating instructions
6 Spacing Laser (VAS 6350/2)
• Notes on operation see operating instructions
7 Spirit Level on Calibration Platform
• On the (VAS 6350/4)
• For checking the horizontal position
8 Left Angle Bracket
• Spacing laser (VAS 6350/2) mount
9 Calibration Tool for Lane Changing Assist (VAS 6350/4)
• Between the corners of the (VAS 6350/4) and the (VAS 6350/1) - dimension A - 1.47 m to 1.90 m
Calibration Tool for Lane Changing Assist (VAS 6350/4) Alignment
- Position the (VAS 6350/4) behind the vehicle at a distance of 1.47 m to 1.90 m to the rear wheels, see - dimension A - in the illustration.
- Bring (VAS 6350/4) to a horizontal position.
- To do this, twist plastic feet under (VAS 6350/4) so that air bubble is level and is located exactly in the center of the indicator - arrow -.
Make sure light does not reflect off the (VAS 6350/4).
Reflections affect the rearview camera (R189) and may make it impossible to perform the calibration.

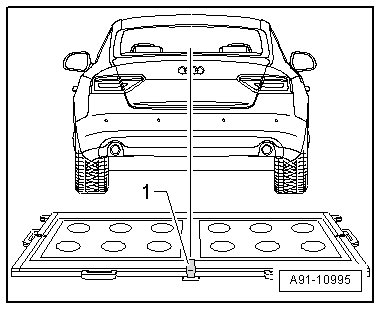

- Turn on the (VAS 6350/3) - 1 - on the (VAS 6350/4) and then align the (VAS 6350/4) so that the laser beam is pointed to the center of the Audi rings.
- Make sure the Audi rings are centered on the rear. Adjust the laser beam as needed.
Continue to calibrate the rearview camera, refer to=> [ Rearview Camera (R189), Calibrating ] Rearview Camera (R189), Calibrating.
