Camera System Overview

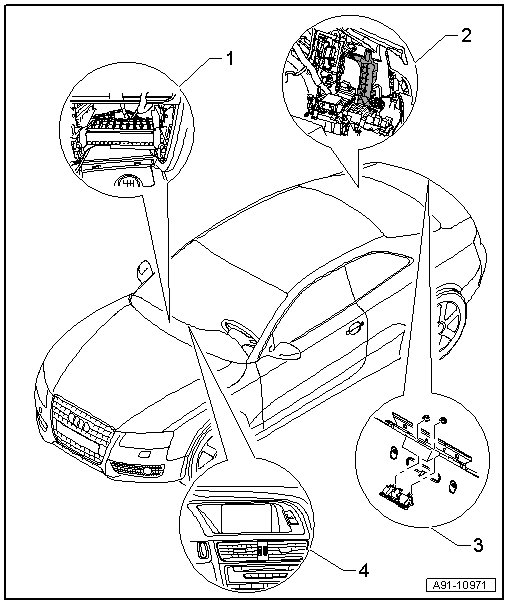

Component Locations: Camera System

Camera System Overview







1 Front Information Display Control Head Control Module
• In center console, at top
2 Rear View Camera System Control Module -J772-
• Behind luggage compartment right side trim
3 Rear View Camera -R189-
• In the rear lid in the handle
4 Front Information Display Control Head
• In center of instrument panel
