Collision Avoidance System Switch: Service and Repair

Lane Change Assistance Button (E530)

Removing






- Switch off the ignition and remove the ignition key.

- Remove the treble speaker trim..

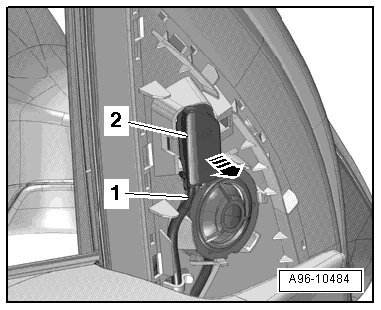

- Remove the lane change assistance button - item 2 - from the retainer - arrow -.

- Disconnect the electrical connector - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Install the treble speaker trim..
