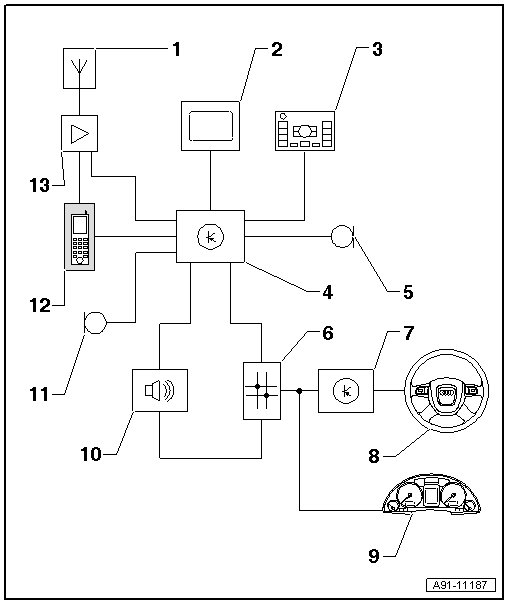

MMI Cell Phone Preparation Overview
MMI Cell Phone Preparation Overview
1 Telephone Antenna (R65) in the Convertible Top Compartment Cover
2 Front Information Display Control Head (J685) in center of the Instrument Panel
3 Multimedia Control Head (E380) in the Center Console
4 Information Electronics Control Module 1 (J794) inside the Instrument Panel
5 Not Installed
6 Data Bus On Board Diagnostic (OBD) Interface (J533) behind Glove Compartment on the Left Side
7 Steering Column Electronics Control Module (J527) on Steering Column at Steering Column Switch
8 Multifunction Steering Wheel
9 Instrument Cluster Control Module (J285) in the Instrument Panel
10 Digital Sound System Control Module (J525) behind the Luggage Compartment Left Side Trim Panel
11 Microphone Unit in Front Roof Module (R164) ( Left Front Microphone (R140) ) inside the Front Interior Lamp (W1)
12 Telephone Baseplate (R126) with Cellular Phone (R54)
13 Telephone Amplifier (R86) behind the Luggage Compartment Right Side Trim.
