Phone System Assembly Overview

Component locations: Radio / Navigation Systems

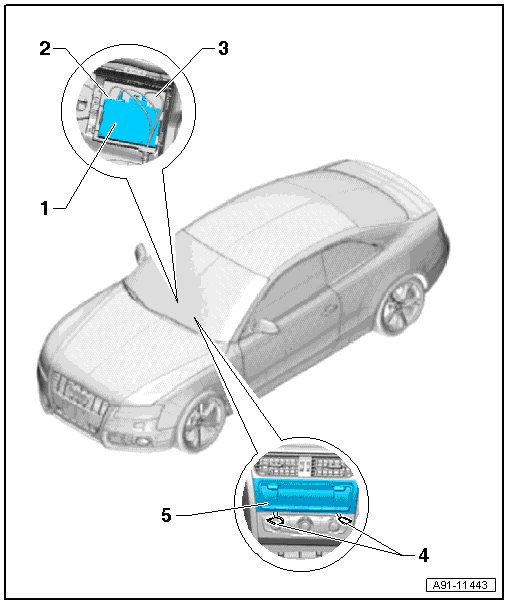

Telephone System Assembly Overview







1 - Telephone Transceiver -R36-
• Located under the front passenger's seat

2 - Bluetooth Antenna -R152-
• Located under the front passenger's seat

3 - Electronics Box

5 - Information Electronics Control Module 1 -J794-
• In center console, at top
