Access/Start System Antenna 1 In Vehicle Interior (R138)

Access/Start System Antenna 1 In Vehicle Interior (R138)

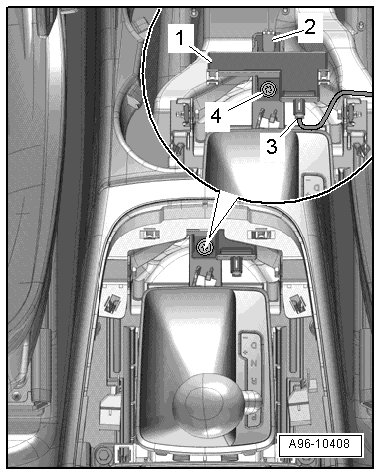

Removing






- Vehicles with Multi Media Interface (MMI) basic equipment: Remove the center console cover.

- Vehicles with MMI comfort equipment: Remove the multimedia control head (E380).

- Disconnect the electrical connector - 3 -.

- Remove the bolt - 4 -.

- Remove interior access/start authorization antenna 1 (R138) - item 1 -.

Installing

• Tightening specifications, refer to => [ Keyless Access Authorization Overview ] Keyless Access Authorization Overview.

Install in reverse order of removal, observing the following:

- When inserting, make sure the interior access/start authorization antenna 1 engages in the mount - 2 -.

- Vehicles with MMI basic equipment: Install the center console cover.

- Vehicles with MMI comfort equipment: Install the multimedia control head.
