Alarm Module: Locations







Control modules in interior and rear part ofvehicle

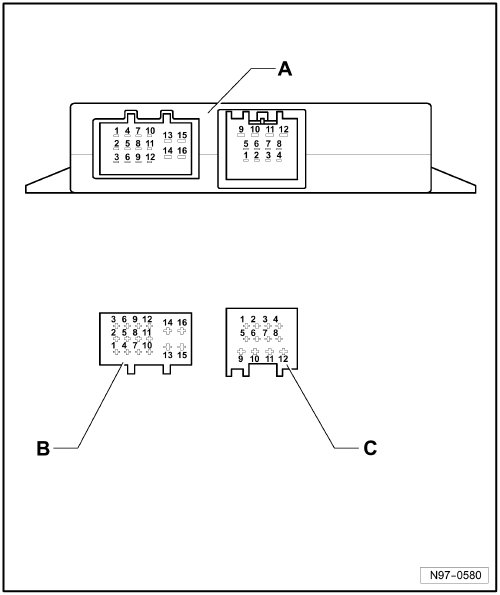

Connectors on Towing Recognition Control Module -J345-







A - Towing Recognition Control Module -J345-
Pin Connectors:

B - 16-Pin Connector, black -T16d-

C - 12-Pin Connector, red -T12d-
