Antenna Amplifier (R24)

Antenna Amplifier (R24)

The antenna amplifier is installed in the convertible top compartment cover.

- Turn off all electrical consumers.

- Remove the key.

Removing

- Remove the convertible top compartment cover trim.

- Remove the service flap.

- Working through the service flap, disconnect the connectors on the antenna amplifiers.

The antenna amplifier bracket must be removed first.

- Remove the bolts - 1, 3 and 4 - on the bracket - 2 -.






- Swivel the bracket - 2 - upward and forward.

- Disconnect the connectors to the antennas and the satellite antenna (R170) , if applicable.

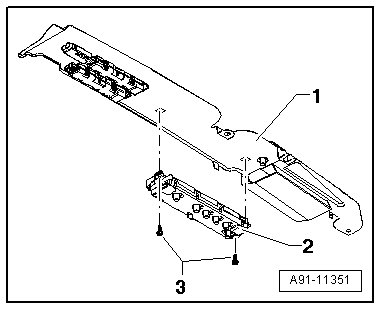

- Remove the screws - 3 - from the antenna amplifier - 2 - and then remove the antenna amplifier - 2 - from the bracket - 1 -.






Installing

- Install in reverse order of removal.

Tightening specifications, refer to => [ Antenna Overview ] Antenna Overview.
