Rear Door Window Glass Weatherstrip: Service and Repair

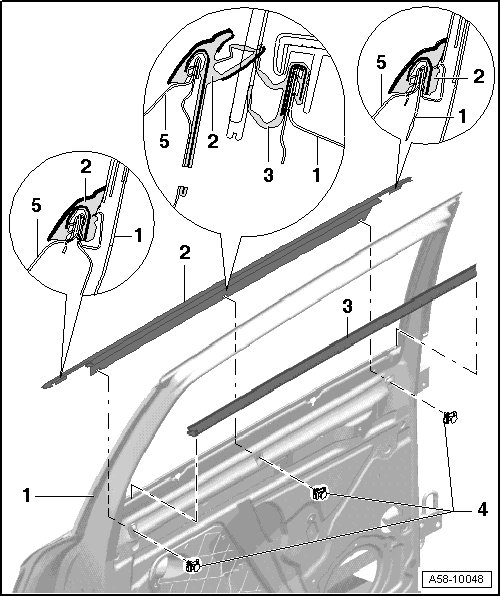

Window Shaft Strip






1 Door

2 Outer Window Shaft Strip

• Removal:

Door trim removed..

- Run door window all the way up.

- Remove clips - 2 - from shaft strip.

- Remove shaft strip upward.

3 Inner Window Shaft Strip

• Removal:

Door trim removed..

- Remove shaft strip upward.

4 Clip

• 3x

5 Outer Door Panel
